The fully automatic bottom flat labeling machine is suitable for labeling on the bottom flat, curved, and concave surfaces of products, with a labeling accuracy of up to ± 1mm. It is mainly used for precision labeling of daily chemical and food products, such as anti-counterfeiting labels on the bottom of chocolate packaging boxes and cosmetics packaging boxes. High labeling accuracy.


The fully automatic bottom labeling machine can be used for manual feeding or automatic connection to production lines. Connecting the production line allows products to flow automatically from the production line onto the fully automatic bottom labeling machine. The equipment automatically transports the products to the labeling mechanism. To ensure stable and high-quality labeling, the fully automatic bottom labeling machine also adds clamping and conveying mechanisms on both sides of the labeling mechanism to ensure that the products are stable during labeling. Seemingly only one second, during this time, the machine carried out a series of tasks, and the label peeling mechanism simultaneously produced the label. Thus, the labeling process was completed

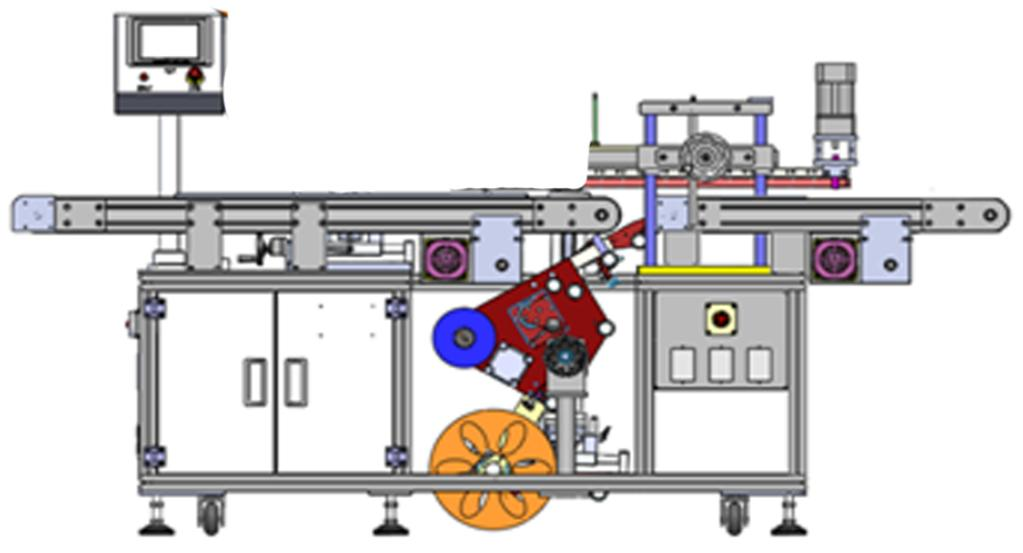

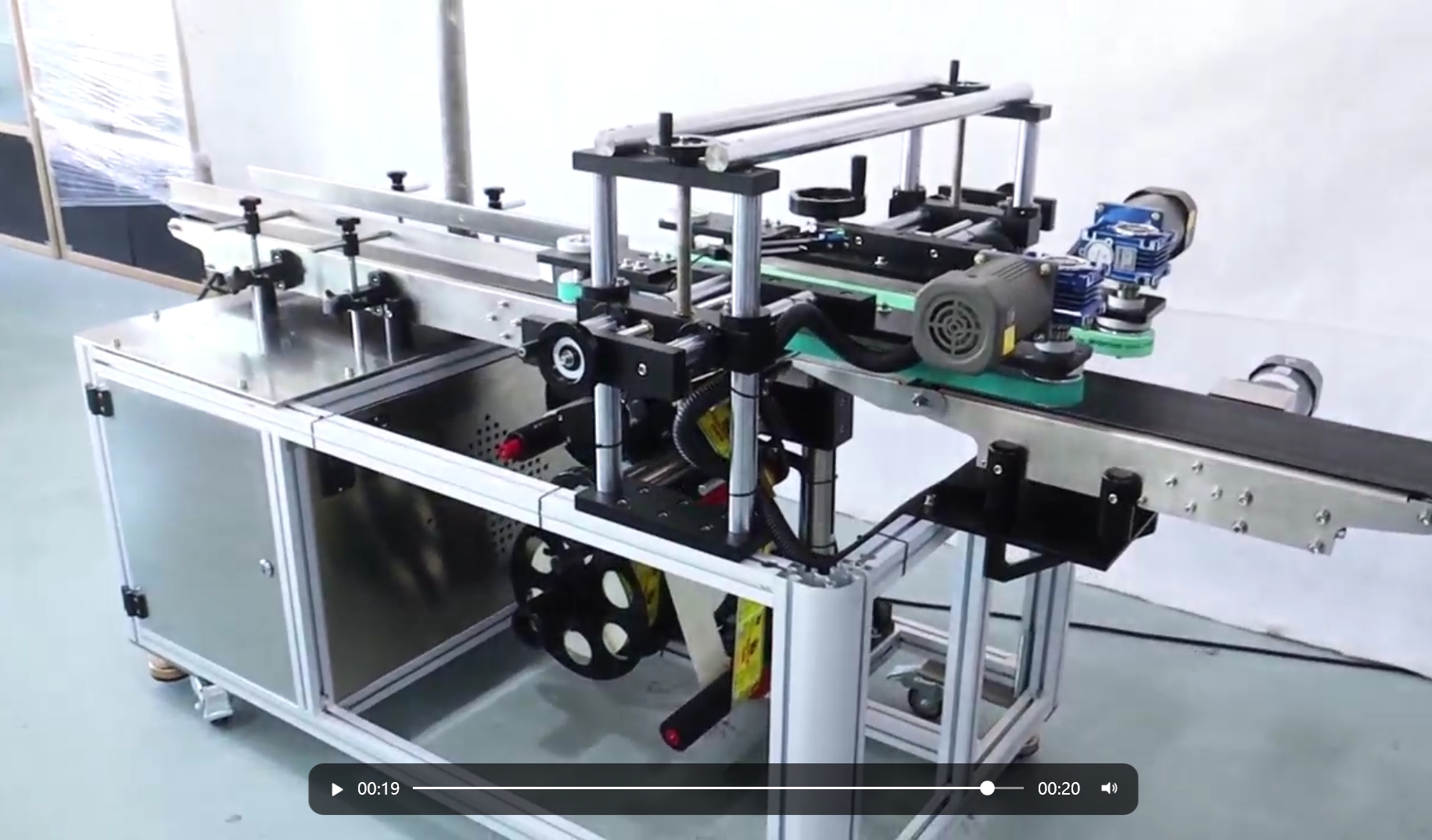

Bottom Automatic Labeling Machine

without printer(printer optional)



Model	BLM-120
Speed	30-120pc/min (it depends on products size)
Labeling Error	±1mm
voltage	220V/ 50hz/60hz
Power	3kw
Dimension	220*80*165cm
Weight	18 0kg



Material parameter:

No	Item	Brand
1.	Label head motor	Xinjie/Delta,Taiwan
2.	Conveyor Motor	Raysay, China
3.	PLC	Xinjie,Taiwan
4.	Touch screen	Weikong, China
5.	Sensor	Panasonic, Japan
6.	Leakage circuit breaker	Zhengtai, Schneider
7.	switch	Mingwei, China
8.	Light Sensors	Omron, Schneider
9.	Clamping Motor	Oubang, China
